X’mas Steels Pvt. Ltd. 25 years old company, an integrated finishing facility is one of the most competent processors of high quality, close tolerance, precision centreless ground bars, rods. Our finished steel products find their application across all major industries like Power Generation, Process automation, Aerospace, Mining, Textile, Plastic/Blow & Injection Moulding, Printing etc. to name a few.

Consistent investment in technological up gradation and state of the art inspection equipment has enabled X’mas Steels to assure total integrity from raw source to finish goods. Its commitment to high standard of customer satisfaction comes from its value added services such as Ultrasonic testing, Custom cut lengths and Customized packaging for local as well as international dispatch.

Our Team
We have a diligent team, which enables us to deliver a premium quality range of Hard Chrome Plated Rods, Hydraulic Pneumatic Cylinder Piston Rods & Bars, Bright Steel Bars and Centreless Ground Bars to the clients. With the support and assistance of our professionals, we have been successfully catering to the requirements of process automation, aerospace, mining and textile industries. These personnel have acquired proficiency and expertise in this specific domain, enabling us to fulfil the exact demands of clients within the promised time frame.

Our team specialises in manufacturing the following:

• Metal rods/bars in the range of 3 mm diameter to 125 mm diameter (maximum weight per job 350 kgs)
• Cold drawn straighten cut
• Cold drawn straighten cut centre-less ground/polished
• Cold drawn annealed straighten cut centre-less/ground/polished
• Centre-less/turned/polished and centre-less/turned/ground/polished
• Centre-less/turned/ground/polished/hard chrome plated

Technical Standards

• Size -according to ISO Spec. 3320 (metric series) & 3321 (inch series)
• Tolerance – As per EN/DIN/ISO Standards
• Out of Roundness – As per EN 10278
• Straightness -Better than 0.3 /1000 mm
• Surface finish -N5 (Ra0.4um max./Rmax.1.25um max./Rt 3.0um max.)

Product Application

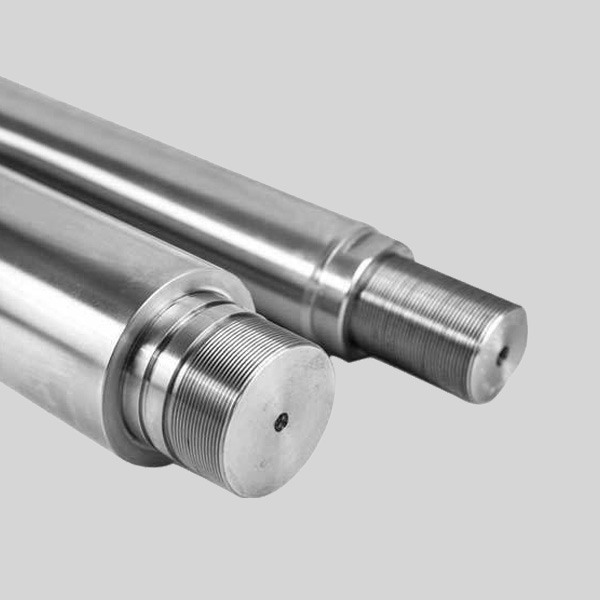

• Piston Rods for Hydraulic/Pneumatic Cylinder & Actuators
• Pump Shafts
• Guide Bars for Injection Blow Moulding & Other Machineries
• Textile Machinery Shafting
• General Purpose shafting for various Engineering Industries
• Metering Rods/Shafts for Printing/Paper Machinery
• Hollow Pipes for Telescopic Cylinders
• Mould Pipe for Aqua Purification purpose
